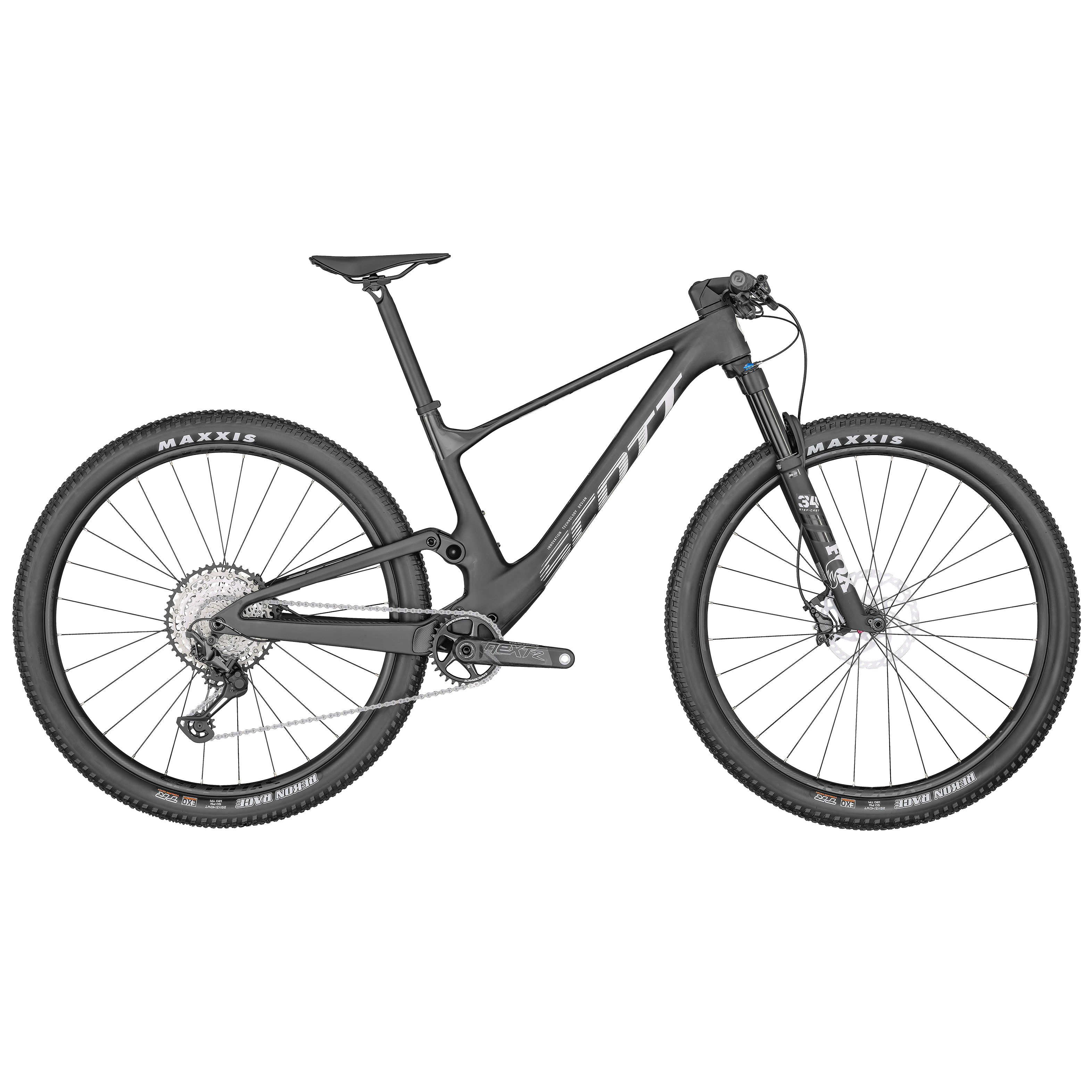

Scott Spark RC Team – 2022

Frame
Spark RC Carbon HMF
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline
Fork
FOX 34 SC Float Performance Air Grip 3
3-Modes / Kabolt 15x110mm axle / 44mm offset / tapered steerer
Reb. Adj. / Lockout / 120mm travel
Rear Shock
FOX NUDE 5 EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
DPS / Reb. Adj./ Travel 120-80-Lockout / T165X45mm
Remote System
SCOTT TwinLoc 2 Technology
3 Suspension modes
Rear Derailleur
Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed
Shifters
Shimano XT SL-M8100-IR / Rapidfire Plus
Ispec EV clamp
Crankset
Race Face Next R Carbon crankarm
143 Spindle / 55mm CL / DM32T SHI
BB-Set
Race Face BB92
Ø30mm / Double Row / Ext. Seal
Chain
Shimano SLX CN-M7100
Cassette
Shimano SLX CS-M7100-12 / 10-51 T
Brakes
Shimano XT M8100 Disc
Rotor
Shimano SM-RT66 / 6 Bolt / 180/F and 160/R
Handlebar
Syncros Fraser 2.0 XC Alloy 6061 D.B.
Flat Bar / 8° / 740mm
Syncros Pro lock-on grips
H’stem
Syncros XC 2.0
Syncros Cable Integration System
-12° rise / 6061 Alloy / 31.8mm / 1 1/8″
Seatpost
Syncros Duncan 2.0 / 10mm offset
31.6x400mm
Seat
Syncros Belcarra Regular 2.0
CRMO rails
Headset
Syncros – Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB
Wheelset
Syncros Silverton 2.5-30 6 Bolt
F: 15x110mm, R: 12x148mm
30mm Tubeless ready rim / 28H / Micro Spline
Syncros Axle w/Removable Lever
with 6mm Allen, T30 and T25 Tools
Front Tire
Maxxis Rekon Race / 29×2.4″ / 60TPI Foldable Bead
Tubeless Ready / EXO
Rear Tire
Maxxis Rekon Race / 29×2.4″ / 60TPI Foldable Bead
Tubeless Ready / EXO
Accessories
Transport Axle
Approx weights in KG
11.7 (Tubless setup)
